Description

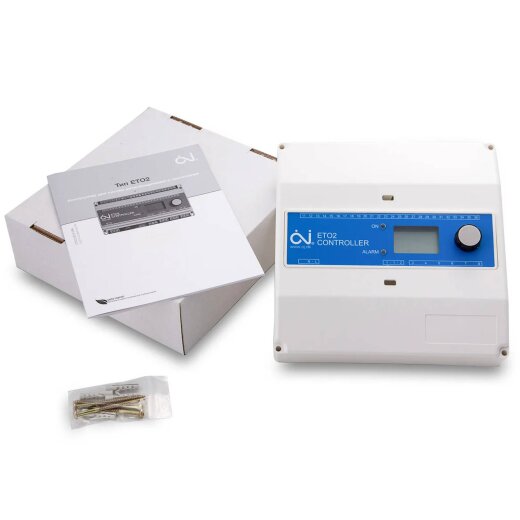

- Type: Dual-zone electronic controller with automatic detection of humidity and temperature.
- Power: Operates on 120-240V, 50/60 Hz.
- Construction: IP20/NEMA 1 rated enclosure, suitable for indoor installation.
- Control: Dry contact relay output, normally open (NO).
- Trigger Temperature Range: -22°C (-7.6°F) to 50°C (122°F).
- Display: Backlit digital display for easy visibility.
- Warranty: 3-year warranty against defects.
- Application: Designed for controlling snow melting heating cable OWS series.
- Dual-Zone Control: Provides the flexibility to control two separate zones independently, enhancing efficiency and customization.
- Intelligent Detection: Automatically detects humidity and temperature in combination with a ground sensor, ensuring precise and effective operation.
- Versatile Application: Suitable for various applications including residential driveways, sidewalks, access ramps, underground parking ramps, roofs, and gutters.
- Energy Efficiency: Adjustable temperature offset and afterrun time per zone help optimize energy consumption.
- Convenient Monitoring and Control: Features a backlit digital display for easy programming and monitoring.
- Reliable Performance: Includes an alarm relay output for fault indication and offers a 3-year warranty against defects.
- Power Supply: 120-240V AC, 50/60 Hz
- Trigger Temperature Range: -22°C (-7.6°F) to 50°C (122°F)
- Enclosure Rating: IP20 / NEMA 1 (indoor installation)
- Dimensions: 6.25 x 10.25 x 3.75 inches
- Display: Backlit digital display

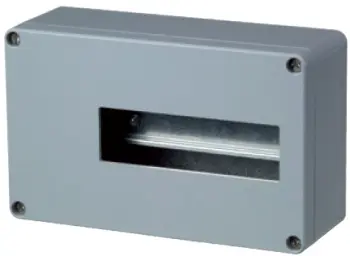

- Mounting: DIN-rail or wall-mounted (in ETO2-BOX mounting box, sold separately)
- Alarm Relay Output: 5A
- Operating Temperature Range: 0°C to 50°C (32°F to 122°F)
- Warranty: 3 years
